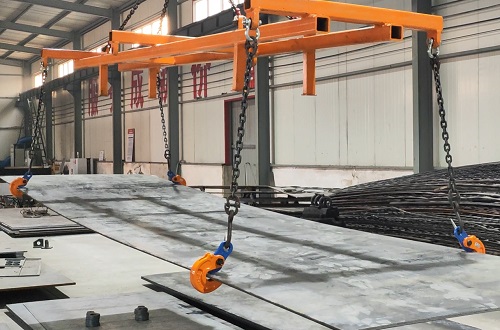

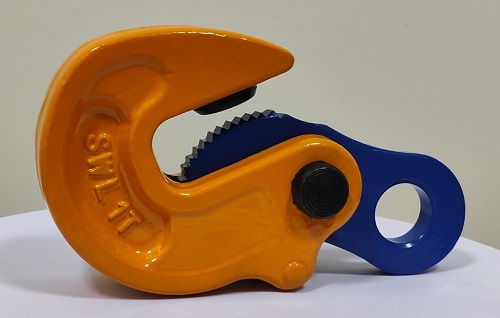

DFM die-forged flip clamp, featuring an integral die-forged forming process, is made from high-strength alloy structural steel and undergoes quenching and tempering heat treatment. The dense microstructure and streamlined continuity ensure maximum tensile strength, delivering enhanced load-bearing stability. Available in 1-10T tonnage options with adjustable opening sizes of 0-80mm, it is compatible with various steel sections such as H-beams and I-beams, as well as plates of different thicknesses, offering exceptional versatility.

The jaws undergo carburizing and quenching treatment, ensuring high hardness. The slip-resistant tooth design prevents slipping and damage to workpieces, with tighter clamping as the load increases. The automatic locking mechanism during flipping prevents detachment, enabling smooth 360° rotation at any angle without jamming. No electricity or hydraulic requirements, allowing instant lifting—ideal for both workshop forging and on-site steel beam transportation. Safe and reliable, choose it for peace of mind!

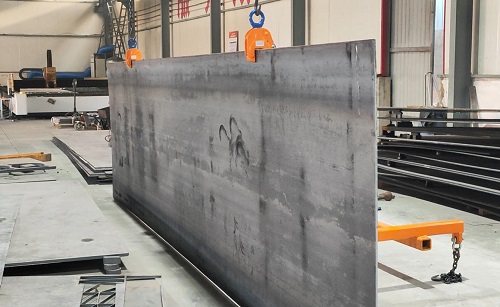

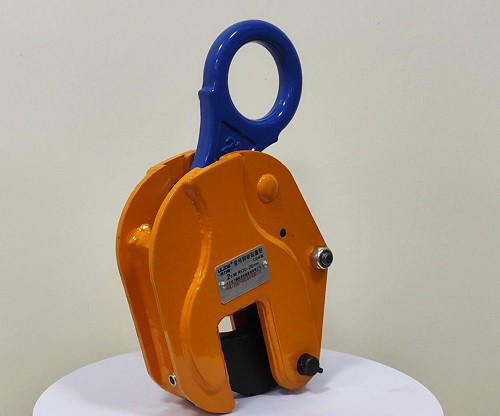

    CDH Vertical Lifting Clamp is primarily designed for vertical hoisting of steel plates. Made from alloy steel, it offers strong impact resistance and stable load-bearing capacity. With a rated load of 0-10 tons, two clamps are used together for convenient and efficient operation.

Equipped with an internal spring locking mechanism, it naturally clamps without operation and enhances clamping force proportionally with the load weight, ensuring maximum safety factor.
